BMA-JE BMA Male Connector Panel Socket PCB Connector BMA-JHD
BMA-JE is an ultra-small push-in (slide-in) blind mating RF coaxial connector that complies with the MIL-STD-348 interface specification. It is a BMA series standard PCB board end male (male) direct insertion installation type product.
Product display
Product Performance Details
| Product model |
BMA-JE |
Dielectric constant |
≥5000MΩ |
| Characteristic impedance |
50 ohm |
Body material |
Gold-plated brass |
| Frequency range |
DC-6GHz |
Central conductor |
Gold-plated brass |
| Voltage standing wave ratio |
≤1.2 |
Insulator material |
PTFE |
| Medium pressure resistance |
≥1000V RMS ,50hz, at sea level |
Durability |
≥500 Cycles |
| Contact resistance |
Center contact:≤3mΩ Outer contact:≤2mΩ |
Temperature range |
-40℃~+155℃ |

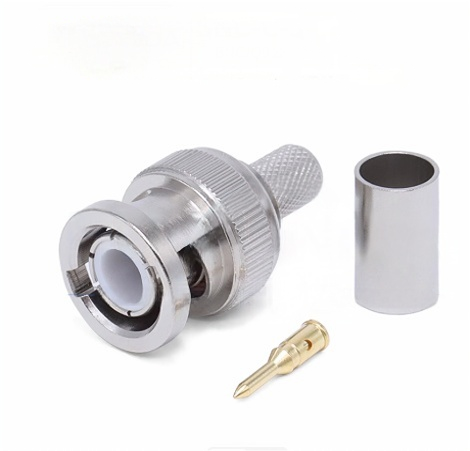

Physical product display

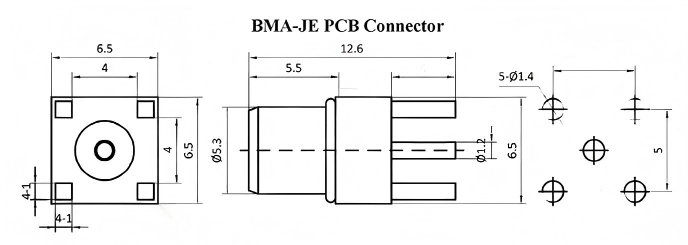

Product external dimensions
Related product recommendations
Display of Strength
Office area
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
