12 Pin Aluminum Alloy GX20 Aviation Plug Connector with 1500V Withstand Voltage for Industrial Equipment

Brand Name : ZSX

Model Number : GX20-12

Certification : ISO9001

Place of Origin : China

MOQ : 50 pcs

Price : Depending on the quantity

Payment Terms : T/T,D/P,Western Union

Supply Ability : 1000000Pcs/Year

Delivery Time : 5-8 Days

Packaging Details : Carton packaging

Name : Aviation Plug Connector

Gender : Male/female

Boday Material : Aluminum alloy

Number of pins : 2/3/4/5/6/7/8/9/10/11/12/13/14/15

Working temperature : -55℃~+70℃

Withstand voltage : 1500V

Contact Now

12 Pin Aviation Plug Connector Male And Female GX20 Aviation Connector

Product Overview

GX series aviation plugs are domestic circular locking connectors (National standard code GX, compatible with standards such as RS765), named "GX + outer diameter size" (For example, GX12 corresponds to an outer diameter of 12mm). According to the outer diameter size, the mainstream models are: GX8, GX12, GX16, GX20, and GX25 (corresponding to shell diameters of 8/12/16/20/25mm) are mainly used in industrial equipment, instruments and meters, and outdoor scenarios.

Product Specifications

Product Model	GX20-12	Contact Piece	Gold plating of copper
Shell Material	Aluminum alloy	Insulation Resistance	≥2000MΩ
Locking Method	M16*1.0 Thread	Working Voltage	125V
Number of Pins	2/3/4/5/6/7/8/9/10/11/12/13/14/15 Pins	Mechanical Life	500 times
Protection Grade	IP 65	Temperature Rise	≤ 50℃
Contact Resistance	≤10MΩ	Withstand Voltage	1500V
Working Temperature	-55℃ ~ +70℃	Working Current	3 A

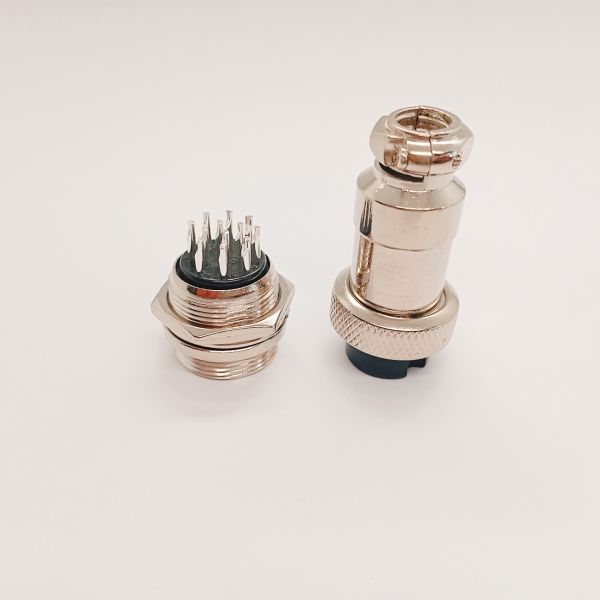

Product Display

12 Pin Aluminum Alloy GX20 Aviation Plug Connector with 1500V Withstand Voltage for Industrial Equipment

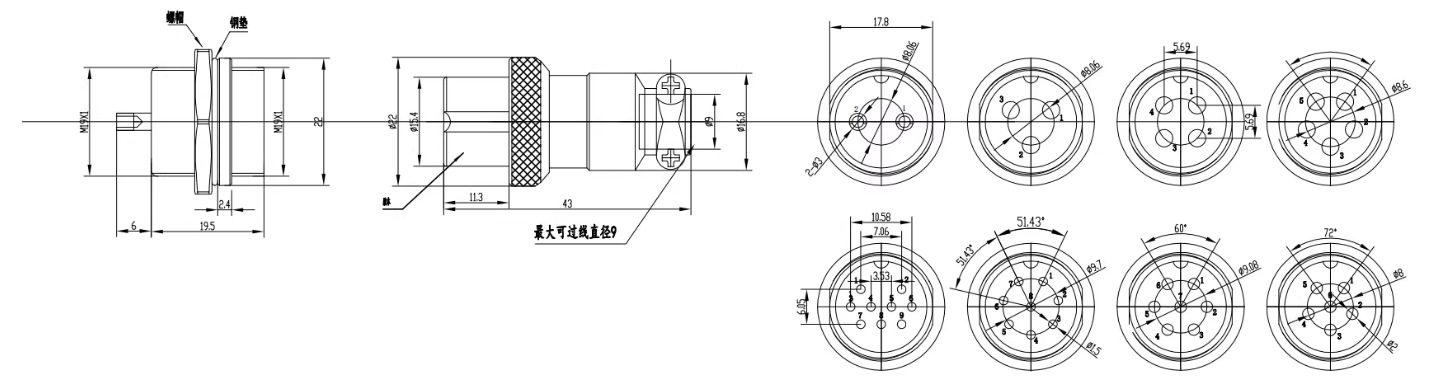

Product Dimensions

Related Products

Manufacturing Capabilities

Production Plant Area

Machining Production Workshop

Precision Assembly Production Workshop

Glass-to-Metal Sealed Production Workshop

Quality Certifications

Customer Engagement

Packaging & Shipping

Standard export carton
Customized specifications such as logo or others according to customers' requirements
Delivery time: Within 24 hours for stocks, 3-4 weeks for mass production orders (based on different quantities, ODM, etc.)

Frequently Asked Questions

Are you a trading company or manufacturer?

Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.

What are the main products of your company?

Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Does your company accept customized products?

We accept ODM.

Does your company provide free samples?

We support free samples with freight paid on delivery.

What is the minimum order quantity of your company's products?

200 pieces. The price is more expensive under 200 pieces.

Which logistics company does your company ship through?

Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

How long does it usually take to receive the goods?

Generally, 3-8 working days for international express, 5-8 working days for air freight.

What payment methods does your company accept?

We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).

How long is your warranty?

The warranty period is three months.
