RF Coaxial Connector BNC Male Soldering Type Bulkhead PCB Connector
Radio Frequency Connector (RF connector for short) is a separable electronic component that is installed on cables or equipment for the transmission of radio frequency signals. It is often used in electromagnetic wave signal transmission scenarios ranging from 3kHz to 300GHz. It plays a key role in multiple fields such as communication and aerospace. SMA series of RF coaxial connectors feature small size, wide frequency band, superior mechanical performance and high reliability. They are one of the most widely used RF coaxial connectors. Ultra-small connectors like MMCX and SMP are constantly evolving, capable of meeting the blind insertion requirements of high-density devices while reducing the space occupied by the equipment, which is in line with the development direction of miniaturization of electronic devices.
Product display
Product Performance Details
| Product model |
BNC-JY |
Dielectric constant |
≥5000MΩ |
| Characteristic impedance |
50 ohm |
Body material |
Gold-plated brass |
| Frequency range |
DC-4GHz |
Central conductor |
Gold-plated brass |
| Voltage standing wave ratio |
≤1.25 |
Insulator material |
PTFE |
| Medium pressure resistance |
≥2500V RMS ,50hz, at sea level |
Durability |
≥500 Cycles |
| Contact resistance |
Center contact:≤1.5mΩ Outer contact:≤1mΩ |
Temperature range |
-45℃~+125℃ |

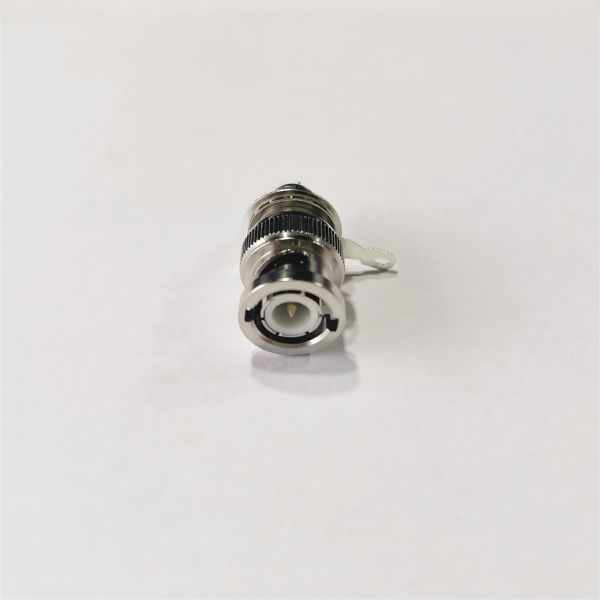

Physical product display

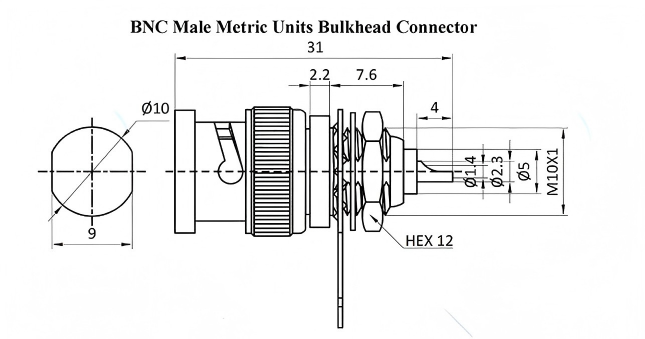

Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer Visit
Product Packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
