Micro-D Type Connector J14F Series 36-pin Jack (Female) Connector
J14F series rectangular electrical connectors are push-pull low-frequency electrical connectors that comply with the GJB142A-94 standard. They feature a rounded corner anti-reverse insertion design, are small in size and light in weight, come in five core numbers (9/15/27/36/51), are press-fit terminals, have uniform cable outlets on the head seat, are locked by push-pull leaf springs, have a small unlocking space, and are suitable for signal and low-power power supply connections in harsh environments. They are a reliable choice for internal wiring in aerospace and industrial equipment.
Core advantages
- Anti-misinsertion and convenient operation: The rounded corner anti-reverse insertion structure avoids mismatching; the push-pull locking is quick to insert and remove with one hand, and the unlocking space is only 60% of that of conventional products, making installation in narrow spaces more efficient.
- Stable transmission and low loss: Contact resistance < 8mΩ (before lifespan), insulation resistance ≥ 500MΩ, withstand voltage 500V, ensuring stable signal and low-power power transmission, and reducing circuit loss.
- Tolerance to harsh environments: -55℃ to 125℃ wide temperature range operation, resistant to 196m/s² vibration and 980m/s² impact, suitable for high humidity and low pressure harsh conditions, with a mechanical life of up to 500 insertions and extractions.
- Comprehensive specifications and wide compatibility: Five core numbers cover different channel requirements, press-fit terminals are suitable for batch assembly, compatible with 0.1 to 0.15mm² cables, and meet diverse wiring scenarios.
Product display
Product Performance Details
| Product model |
J14F-36TJ |
Acceleration |
780m/s2 |
| Ambient temperature |
-55℃~+125℃ |
Rated current |
2 A |
| Vibration |
10Hz~2000Hz 196m/s2 |
Contact resistance |
≤8mΩ |
| Relative humidity |
At 40±2℃,90% to 95% |
Insulation resistance |
≥500mΩ |
| Impact |
980 m/s2 11ms |
Atmospheric pressure |
101.3KPa-1.33Pa |
| Withstand voltage |
500 V |
Mechanical life |
500 times |

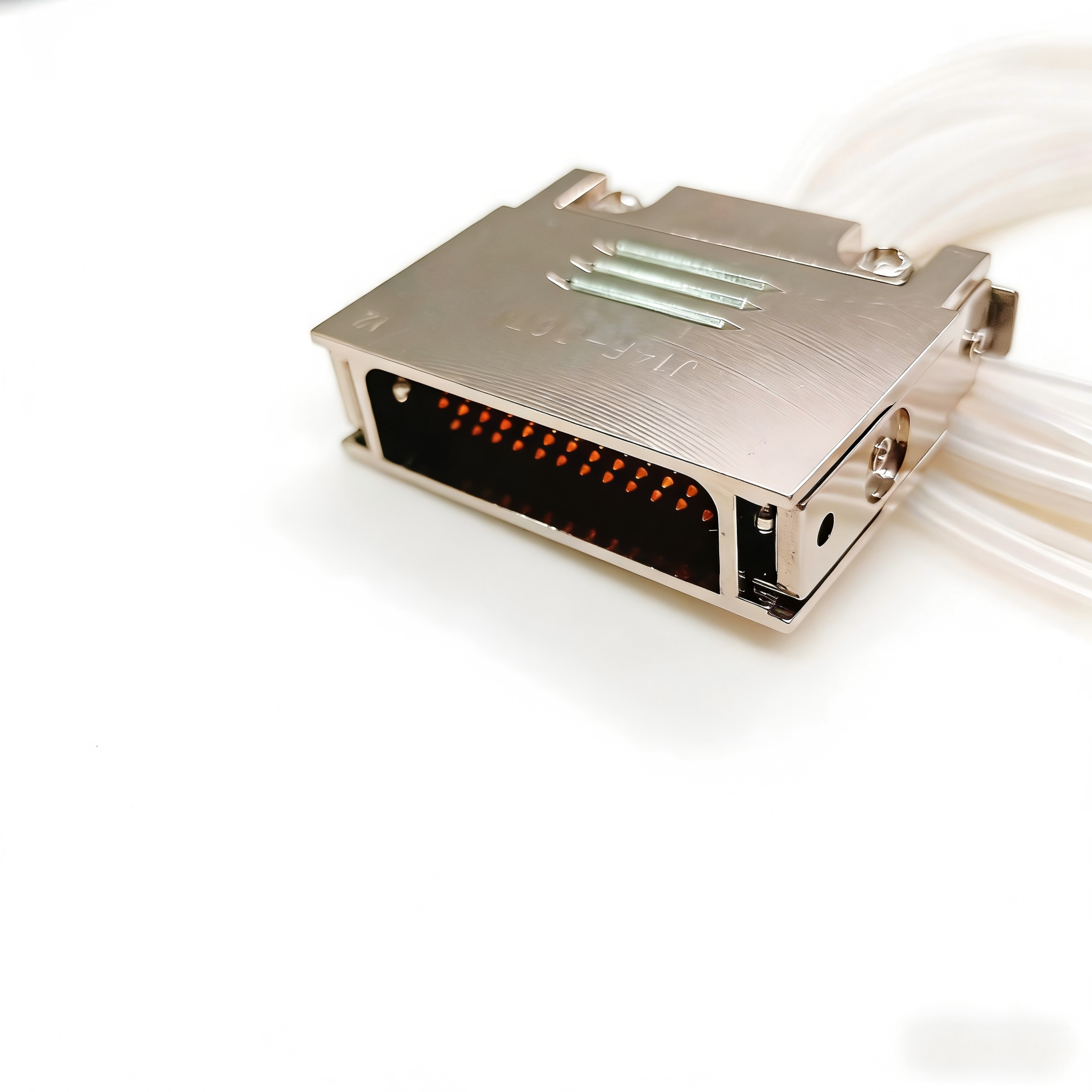

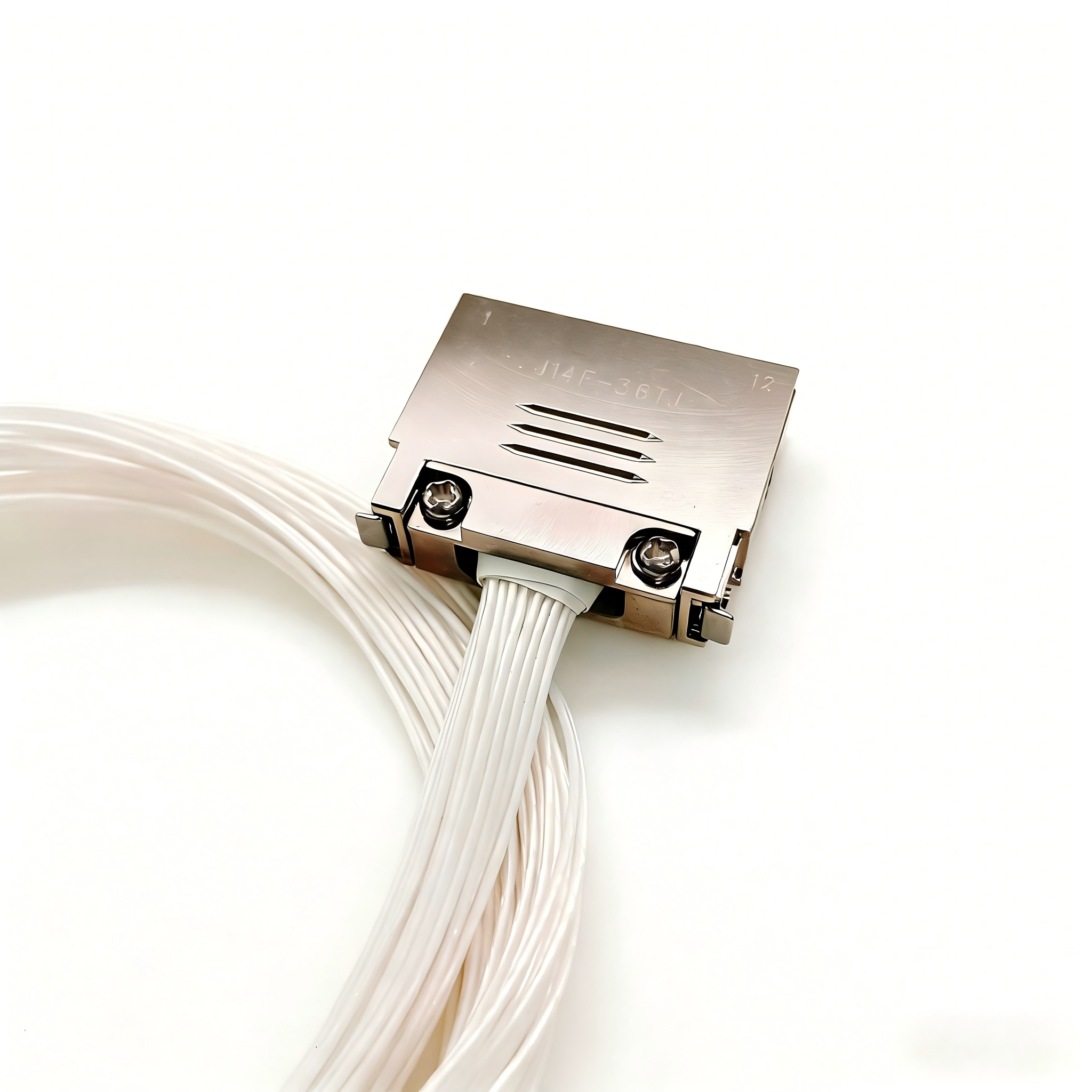

Physical product display
External dimensions of the product
| Model(Plug) |
Model(Socket) |
A1 |
A2 |
L |
B1 |
B2 |
| J14F-9TK/ZJB |
J14F-9TJ/ZKB |
19 |
9.4 |
14.5 |
6.7 |
4.7 |
| J14F-9TK/ZLA |
J14F-9TJ/ZKL |
19 |
9.4 |
14.5 |
6.7 |
4.7 |
| J14F-15TK/ZJB |
J14F-15TJ/ZKB |
21 |
10.8 |
16 |
7.9 |
5.9 |
| J14F-15TK/ZLA |
J14F-15TJ/ZKL |
21 |
10.8 |
16 |
7.9 |
5.9 |
| J14F-27TK/ZJB |
J14F-27TJ/ZKB |
26 |
16 |
21.5 |
7.9 |
5.9 |
| J14F-27TK/ZLA |
J14F-27TJ/ZKL |
26 |
16 |
21.5 |
7.9 |
5.9 |
| J14F-36TK/ZJB |
J14F-36TJ/ZKB |
31 |
20.6 |
26 |
7.9 |
5.9 |
| J14F-36TK/ZLA |
J14F-36TJ/ZKL |
31 |
20.6 |
26 |
7.9 |
5.9 |
| J14F-51TK/ZJB |
J14F-51TJ/ZKB |
38 |
27.6 |
33 |
7.9 |
5.9 |
| J14F-51TK/ZLA |
J14F-51TJ/ZKL |
38 |
27.6 |
33 |
7.9 |
5.9 |
